Medicine Processing Mini Laboratory Freeze Dryer Small Lab and Food and Pharmaceutical Freeze Dryer

1.0 Units
MOQ
Medicine Processing Mini Laboratory Freeze Dryer Small Lab and Food and Pharmaceutical Freeze Dryer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Vacuum Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing, Fruit Processing
Condition: New
Voltage: According To Customers' Requirements
Power: Accroding To Model
Key Selling Points: Competitive Price
Warranty: 1 Year
Weight (KG): 120
Applicable Industries: Home Use, Other, Biology, Chemistry, Pharmacy
Showroom Location: None
Marketing Type: Hot Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: PLC, Compressor, Circulation Pump, Refrigerator, Drying Chamber, Condenser, Vacuum Pump
Heating Method: Steam Heating
Material: SUS304L
MOQ: 1 Set
Vacuum Degree: <10Pa
Suitable For Drying: Rose
Usage: Pharmaceutical Industry
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Certification: ISO CE FCC
Basic Infomation
Certification: ISO CE FCC
Payment & Shipping Terms
Packaging Details: Small freeze dryer normally packed by wooden box and shipped by standard container. If export to European countries or North America countries, the wooden box will be fumigated.
Product Description
Product Overview

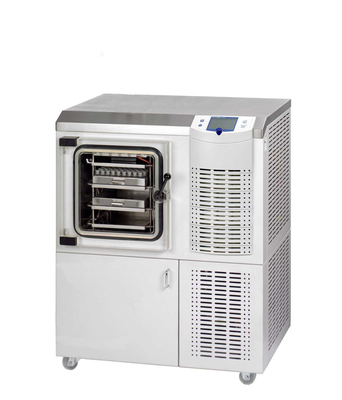

KGJ-3F Lab Freeze Dryer

Freeze drying is a popular material preservation method, which has been widely used in the fields of chemical industry, food, materials, medicine, biological products and so on. The advantages of laboratory lyophilizer are small volume, light weight, multiple functions, stable performance and high accuracy of test system. At the same time, it can adapt to the freeze-drying experiment of a variety of materials. Any detailed parameters can be customized until customer requirements are met. Our products have a one-year warranty, and our team has many years of experience in the field of freeze-drying.
For more detailed information, please contact us anytime!
Samples of Freeze Dried Chemical Materials By using KGJ-2F
For other sample pictures of freeze dried products, please contact us.
Product Paramenters
Model
KGJ-03F
No.of shelves
3+1radiant
Total shelf area(m2)
0.36
MOC of the shelves
SS304orSS316L
Shelf uniformity
±1℃
Maxiumm low temperature
-60℃
Condenser capacity
3kg/24h
Coolling time （20℃~40℃）
30min
Ultimate vacuum
<10Pa
Pump down time to 10Pa
30min
Chamner leak rate
<20 ML/S
Product chamber
SS304
rectangular chamber
MOCSs304
Door
acrylic door with opening to a max angle of 110° a max angle of 110°
Condenser chamner
SS304 round chamber with
MOCSs304
Compressor
TECUMSEH3HP*1
Pressure control
danfoss
For other type freeze dryer, please don't hesitate to ask me for the parameter. We are able to manufacture the suitable machine exactly meet your requirements. Allow Customization of Freeze Dryers.
Details Images

Control system(Siemens PLC)

Advantech PLC is adopted for control system. All electrical components are compatible with local supplies including voltage,
frequency, overload protection and so on.

Tray(SUS304L)

The SUS304L stainless steel product trays are designed for freeze dryer to process liquid material mainly.

Vapor Condenser

The vapor condenser is located in the rear half of the chamber or lower half, and is constructed from SUS304L, 25mm round tube.
Refrigeration of the vapor condenser is by direct expansion.
Successful Project
Recommend Products
Certificates
FAQ
Q1: How long can I expect to get the sample?
A:We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.
Q2: Packaging & Shipping:
A:Export Wooden case&FOB Shanghai
Q3: What about the lead time for mass production?
A:30 work days from date of contract signing (down payment).
Q4: What are your main products?
A: Mold temperature control unit, oil and water TCU, chiller ,freeze dryer,mold cleaner.
Q5: What is your terms of delivery?
A:FOB Shanghai.
Q6: Is it all right to make customer's own brand name?
A：Yes, we will meet the needs of customers.
Q7: Are you a manufactuer or trading company?
A:We are the manufacturer with decades of research and development production experience.
Q8: Can you do the design for us?
A:Sure.We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
Pre-sale:
As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable
freeze dryer. Detailed tech-info will also be provided for you.
After-sale:
We will keep in touch with you, to make sure every parts of the freeze dryer work well. One year warranty, free online service.
