Features Gallery Product Description Request A Quote

Features

Specifications

Type: Freeze Drying Equipment

Application: Medicine Processing, Chemicals Processing, Food Processing, Vacuum Freeze Drying For Food, Fruit, Etc.

Condition: New

Voltage: 380V, 50Hz

Power: 2000w

Dimension(L*W*H): 655 * 640 * 1200mm

Key Selling Points: High-accuracy

Warranty: 1 Year

Weight (KG): 210

Applicable Industries: Food & Beverage Factory, Home Use

Showroom Location: None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: Motor

Heating Method: Electric Heating

Product Name: Vacuum Freeze Drying Machine

Shelf Temperature Range: -50â„ƒ~+70â„ƒ

Installed Power: 2000W

Host Weight: 210kg

Mainframe Size: 655*640*1200mm

Cooling Method: Air Cooling

Number Of Material Trays: 1

Material Tray Size: 395*265mm

Shelf Size: 400*270mm

Basic Infomation

Payment & Shipping Terms

Packaging Details: Wooden packing;Export standard packing for vacuum freeze drying machine.

Supply Ability: 1000 Set/Sets per Month vacuum freeze drying machine

Product Description

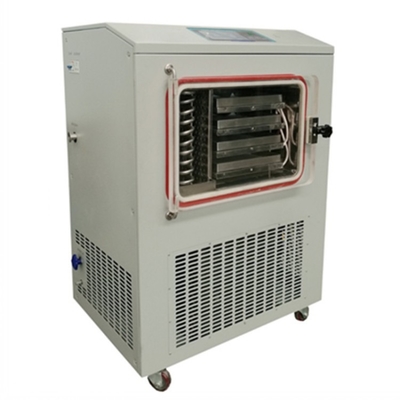

Portable Homemade Liofilizator Mini Lyophilizer Freeze Dryer Lyophilizer

For Making Pet Food

Vacuum freeze dryers are widely used in medical, pharmaceutical, biological research, chemical and food fields. Freeze-dried items are easy to store for a long time, and can be restored to the state before freeze-drying after adding water and maintain the original biochemical properties. LGJ-50FD (electric heating) freeze dryer, freeze-drying in situ. It changes the tedious operation of the past drying process, prevents the pollution of materials, and realizes the automation of drying and sublimation. This model has shelf heating and programmable functions, and can memorize the freeze-drying curve, which is convenient for users to observe the freeze-drying process of materials.

Product Paramenters

Model	LGJ-10FD top press type
Freeze drying area	0.1㎡
Shelf dimension	400×270mm
Tray dimension	395×265mm
Tray number	1pcs
Shelf spacing	70mm
Shelf temp. range	-50℃~+70℃
Cold trap temp.	≤-60℃, optional ≤-80℃
Ice collecting capacity	≥6KG/24h
Pumping speed	4L/S
Ultimate vacuum	≤5pa
Power	2000w
Main unit weight	210kg
Main unit dimensions	655×640×1200mm
Cooling mode	wind cooled
Shipping weight	1L（thickness 10mm）
Loadable vials'qty	Ф12mm：777pcs
		Ф16mm：434pcs
		Ф22mm：220pcs

Technical parameter characteristics of LGJ-10FD ordinary vacuum freeze dryer:

1. Square warehouse in-situ vacuum freeze dryer, pre-freezing and drying are completed in-situ, easy to operate, and good drying effect. 2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and can observe the whole process of freeze-drying. 3. The inflation (discharging) valve adopts a safety diaphragm valve, which can be connected to an inert gas source, and filled with inert gas after drying to extend the shelf life of the material. 4. Specialized gas diversion technology, uniform ice trapping by cold trap and strong ice trapping ability. 5. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise. 6. Fuzzy control technology for the temperature of the shelf, the temperature difference of the shelf is small, the temperature control accuracy is high, and the drying effect is uniform. 7. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and at the same time control the sample heating rate and optional vacuum adjustment system during the sublimation and analytical drying stages. 8. The powerful sensor calibration function ensures the accuracy of long-term use of the measured value. 9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance. 10. The professionally designed FD-EMB control system can save hundreds of process recipes, each of which contains 50 temperature control zones, which improves the process optimization rate. 11. The intelligent data recording system records and displays the temperature curve of the cold trap, the temperature curve of the sample, and the vacuum degree curve in real time. The exported data can be browsed and printed by computer and various operations, which is convenient for process optimization and drying effect verification. 12. Flexible manual + automatic control mode, manual for exploring the process, and automatically for mass production. 13. Real-time alarm display and historical alarm query function, convenient for fault diagnosis and equipment maintenance. 14. User level and password can be set, and operation and management can be carried out with decentralized authority.
