Information of vacuum freeze dryer
Vacuum freeze drying technology is the most advanced technology for food dehydration processing at present. Compared with common drying method, Freeze dried food features long period of quality assurance, good rehydration natrue, good-looking color, good flavor, taste, shape and high content of nutritious components. The dried food basically remains unchanged in its volume and shape, it looks like sponge and has no shrinking. This kind drying technology can be widely used in process of vegetables, fruits, condiments, aquatic products, biological products, medicine, beverage and etc.
All kinds of freeze dried products come from "Shenyang Aero Space Xinyang freeze dryer" producing, let's know about this special machine and processing together.
Decription of pilot freeze dryer
1. A maximum ice build up to 6 millimeter resulting in a negligible temperature drop over the ice and a low energy consumption;
2. Constant condenser temperature;
3. High freeze drying capacity/m2 of tray surface;
Where can find freeze dryer video of Aerspace Xinyang?
Here "Youtube: http://www.youtube.com/watch?v=bbvxYGB7XMg&feature=youtu.be"

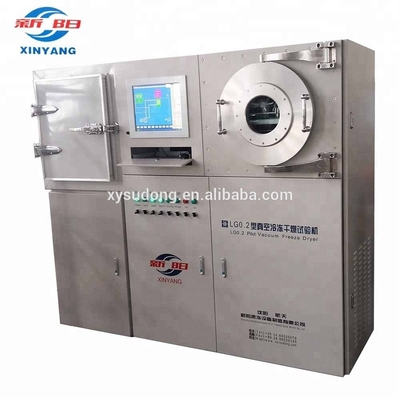

What is the specification of LG0.2 ?
Dimension of heating plates 300*330*8mm
Number of heating plates 3
Free distance between heating plates 82mm
Heating type Double-sided radiation
Heating medium, max. temperature 130℃
Dimension of trays 300*330*35mm
Number of trays 2
Volume of pipe inserts for vapor trap 1.2L
Nominal H2O sublimation capacity 2kg/ batch
Nominal working pressure 20~133Pa
Time for pumping down 15min
Refrigeration capacity needed (-35℃evaporating) 0.4kw
Install power 4kw
Why the freeze dryers of Aerospace Xinyang are the best?
Because freeze dryers of Aerospace Xinyang have below advantages, choose it? Correct absolutely.
1. Efficiency of Heating plates
The material of heating plates are aviation aluminum with anodized on the surface, over 100% heat release to the product by radiation way, keep good heating uniformity everywhere.
2. Automatic control system
Advanced intelligent control system keeps whole system stable and reliable running for a long term, furthermore, Simple operation method can be much easier to master.
3. "Product curve and data" record & save function
Adopt advanced design idea, all in the process of running data recorded and stored in a computer, for the data reference of next time, at the same time, it is eay to find out the actual situation of equipment operation by these data.
What is the model & specification of Xinyang freeze dryer?
Table1
| Specification Model | LG0.2 | LG1.0 | LG1.5 | LG5 | LG10 | LG20 | |
| Heating Areas(m2) | 0.2 | 0.8 | 1.5 | 5.3 | 10 | 20 | |
| Numbers of Vapor trap | Single | Single | Single | Single | Single | Single | Double |
| Trapping Capacity | >2kg/batch | >8kg/batch | >20kg/batch | >65kg/batch | >130kg/batch | >250kg/batch | >44kg/hr |
| Heating Medium | Electric | Electric | Electric | Water&electric | Water&electric | Water&electric | Water&Steam |
| Heating Mode | Double side radiation | ||||||
| Temperature range of Heating plates | Normal Temp.~+120℃ | <95℃ | <95℃ | <95℃ | Normal Temp.~+130℃ | ||
| Vacuum Pressure (Pa) | 20~133 | ||||||
| Need Refrigeration Capacity (t0=-40℃,tk=-35℃) (Kw) | With Refrigeration System | 18 | 35 | 44 | |||
| Consumption of Steam (kg/h) | None | None | None | None | 50 | None | 75 |
| Electric Power Supply (Kw) | 3.2 | 8.5 | 15 | 35 | 26 | 65 | 38 |
| Tray Numbers | 2 | 4 | 4 | 14 | 26 | 52 | 54 |
| Loading Raw Material | 3 | 8 | 20 | >70 | >130 | >260 | >270 |
Table 2
| Specification Model | LG30 | LG50 | LG75 | LG100 | LG125 | LG200 | |
| Heating Areas(m2) | 30 | 50 | 75 | 100 | 125 | 200 | |
| Numbers of Vapor trap | Single | Double | Double | Double | Double | Double | Double |
| Trapping Capacity | >400kg/batch | >66kg/hr | >110kg/hr | >165kg/hr | >220kg/hr | >275kg/hr | >440kg/hr |
| Heating Medium | Water&electric | Water&Steam | Water&Steam | Water&Steam | Water&Steam | Water&Steam | Water&Steam |
| Heating Mode | Double side radiation | ||||||
| Temperature range of Heating plates | <95℃ | Normal Temp.~+130℃ | |||||
| Vacuum Pressure (Pa) | 20~133 | ||||||
| Need Refrigeration Capacity (t0=-40℃,tk=-35℃) (Kw) | 55 | 80 | 120 | 160 | 200 | 320 | |
| Consumption of Steam (kg/h) | None | 150 | 200 | 280 | 340 | 400 | 690 |
| Electric Power Supply (Kw) | 75 | 40 | 43 | 63 | 69 | 85 | 115 |
| Tray Numbers | 78 | 80 | 120 | 180 | 240 | 300 | 480 |
| Loading Raw Material | >390 | >400 | >600 | >900 | >1200 | >1500 | >2400 |
Packaging: Drying chamber: Bare back packing; Components: wood case or other packing material.
Shipping: By shipment or land transport
We guarantee that the commodity hereof is made of the best materials with first class workmanship, brand new and unused, and complies in all respects with the quality specification stipulated in this Contract and Appendix. The guarantee period shall be 12 months counting from the date of acceptance certificate. During this period, if quality problem occurs, the Sellers should guarantee he will respond and advise solution through verbal or written communication. Should the problem remain unsolved, the seller will despatch maintenance personnel to the buyer’s factory as soon as possible to carry out field maintenance. If equipment damage is caused by non-operation error, then maintenance is free, otherwise it is for the buyer’s account.
We will train the operators and maintenance technicians at local when we guide installation and commissioning, so the operators and technician can solve some basic problems after training, and we will send engineers to handle trouble if they can solve the trouble.
is the story of Aerospace Xinyang? What is the story of Aerospace Xinyang?
Shenyang Areo Space Xinyang Quick Freezing Equip.Manuf.Co.Ltd. is engaged in manufacturing food machines. The company based on strong aerospace technology has developed a large amount of new products in food processing field and made an important contribution to the development of food industry for domestic and oversea customers. we have research and development new product ability, we also have food experts oversea.
The company took the lead in developing SS-1 type of food deepfreeze equipments in 1985. Later also developed over 30 types of 6 series of food deep freeze equipments: multi-type of vacuum freeze dryer, Product pre-processing line, IQF freezer, Vacuum fryer, Vacuum dryer, Vacuum cooler, Refrigeration system and so on. LG series of vacuum freeze dryer bases on the experiences accumulated in the fields of heat, refrigeration, vacuum, container manufacturing and automatic control. It was chosen as State Important & New Product after the tests of science bureau and other five bureaus.
IQF freezer and vacuum freeze dryers have been exported to America, Denmark, Canada, Korea, Singapore, Burma, Thailand, Malaysia, Indonesia, Nigeria, Japan etc. It has earned all kinds of titles from State Economic Trade Commission, State Science Ministry, National Defense Science & Industry Commission, Aerospace Ministry and Agricultural Ministry. It has been chosen as Grade AAA Credible Enterprise by banks. The company also has the State Import & Export Enterprise Qualification Certificate and High-tech Enterprise Authentication Certificate. The company has passed GJB9001A-2001 & National ISO 9001-2000 quality management system.
Web: www.xy-sudong.com
