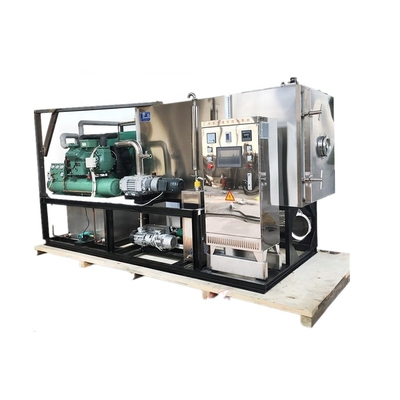

Name: food & Industrial Beverage Factory Vacuum Freeze Dryer Dryer Machine For Fruit Meat Vegetable
Brand: food & Industrial Beverage Factory Vacuum Freeze Dryer Dryer Machine For Fruit Meat Vegetable
SKU: FD-5C
Price: 1 USD
Availability: InStock
Rating: 4.7 (118 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Applicable Industries: Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops

Condition: New

Model Number: FD-5C

Type: Lyophilizer

Voltage: Customized

Power: 16000

Weight: 3500kg

Dimension(L*W*H): 3000*1500*1800

Year: 2019

Warranty: 1 Year

After-sales Service Provided: Online Support

Certification: CE ISO

Material: 304 Stainless Steel

Vacuum Pump: Rotary Vane Pump

Shelf Medium: Low Temperature Silicone Oil

Defrosting Method: Hot Water Spray

Working Environment Temperature: Less Than 40Â°C

Heating Source: Heating Oil

Capacity: 50kg/batch

Ultimate Vacuum: 1 Pa

Water Catching (12 Hours): Max. 50 Kg

Shelf Temperature: -35~120Â°C

Basic Infomation

Certification: CE ISO

Model Number: FD-5C

Payment & Shipping Terms

Packaging Details: Wooden case of export standard

Supply Ability: 10 Set/Sets per Quarter

Product Description

Industrial vacuum freeze dryer lyophilizer machine for fruit meat vegetable

Introduction

Vacuum freeze-drying technology is widely applied in biological engineering, pharmaceutical industry, food industry, materials science and deep processing of agricultural and sideline products.

Technical data

Model	FD-1C	FD-5C	FD-10C	FD-20C	FD-30C	FD-50C
Control method	PLC touch screen
Working methods	quick freezing, lyophilization
Material	SUS304
Drying area (m2)	1	5	10	20	30	50
Loading capacity(kg)	10	50	100	200	300	500
Tray size (mm)	40050025	600100025	800100025	600100025	80050020	600100020
Tray pcs	5	9	13	34	76	80
Tray form	SUS304, perforated or solid tray
Shelf	8	13	18	38	40	86
Shelf temperature(°C)	-55~120
Shelf medium	low temperature silicone oil
Vacuum pump	rotary vane pump	two-level pump			combined pump
Working vacuum(pa)	<130
Ultimate vacuum(pa)	<10
Defrosting method	hot water spray				hot water soaking
Compressor	copeland
Power	custom
Working environment temperature(°C)	<40
Rated power(kW)	6	16	28	56	70	110
Size (mm)	20007001700	300015001800	320016002100	500022002500	600026002900	900038003500

Applying the principle of sublimation for drying. Rapid freezing of the material is achieved in low temperature, and then in a suitable vacuum environment the frozen water molecules will be directly sublimated into water vapor and then escape.
The product obtained by drying is called lyophilisate and this process is called lyophilisation.

The material is always in the low temperature (frozen state) before drying, and the ice crystals are evenly distributed in the material. The sublimation process will not be concentrated due to dehydration, thus avoiding side effects such as foam and oxidation caused by water vapor. Dry matter was dry sponge porous, the volume is basically the same, very easy to dissolve in water and restitution. To the greatest extent to prevent physical and chemical and biological aspects of denaturation.
The freeze dryer is composed of a refrigeration system, a vacuum system, a heating system and an electrical instrumentation control system. The main components is oven, condenser, refrigeration units, vacuum pumps, heating / cooling devices. Its working principle is to make the material be frozen below a certain temperature, and then under the conditions of the vacuum the solid state of the water (ice) is directly sublimated into water vapor and discharged out to get dry items.
