The physical, chemical and biological statement of the material state stay unchanged. The damage to volatility composition and denaturalization nutrition ingredient under heating condition is lowed. The material after processing is porous and volume is almost the same as before processing. So due to large contact are, when the material is added with water, it can recover quickly and has longer storage life in sealed container.

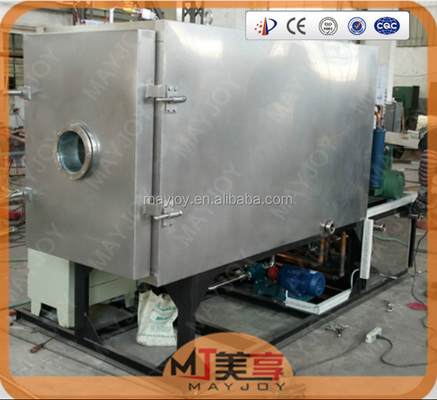

The vacuum freeze drying machine can be widely used for developing and producing various heat sensitive biological products, such as vaccine, medicines, vegetable vacuum packing, snake powder, capsule etc.
Features:
The vacuum freeze drying machine is of compact structure, full automatic control, easy to maintain and operate, with following advantages:
1. Fast drying speed, timer shortened to 1/3- 1/10.
2. Low energy consumption, 20-30% of normal drying machine.
3. Wide drying temperature scope ( -55℃~ 120℃), fast drying under low temperature scope(-20℃~ 50℃.
4. Vacuum state, the drying material quality is as good as frozen material.
5. The machine can recycle the organic solvent, which is conductive to lower the production cost and environment protection.
6. Vertical door to realize material orthotopic freeze-drying.
7. PLC control with touchable human-computer operating interface, to realize real-time recording for multi-channel temperature data in drying processing and available for observation in curve form.
8. The shelf temperature control curve can be preset to realize the automatic sublimation.
9. The machine is with USB connector to upload the drying data to computer for storage, reading and printing, etc.
Technical parameter:
|
Model |
MJ-0.5C |
MJ-1C |
MJ-5C |
MJ-10C |
MJ-20C |
|
Control system |
PLC+human-computer interface |
PLC+human-computer interface |
PLC+human-computer interface |
PLC+human-computer interface |
PLC+human-computer interface |
|
Working way |
Quick-freeze, freeze-drying |
Quick-freeze, freeze-drying |
Quick-freeze, freeze-drying |
Quick-freeze, freeze-drying |
Quick-freeze, freeze-drying |
|
Cabinet material |
SS304 |
SS304 |
SS304 |
SS304 |
SS304 |
|
Drying area (m2) |
0.5 |
1 |
5 |
10 |
20 |
|
Weight capacity(kg) |
5 |
10 |
50 |
100 |
200 |
|
Tray size (mm) |
300*400*25 |
300*800*25 |
600*800*25 |
600*1000*25 |
600*1000*25 |
|
Tray No. |
5 |
7 |
12 |
17 |
34 |
|
Tray type |
With or without mesh |
With or without mesh |
With or without mesh |
With or without mesh |
With or without mesh |
|
Plates |
6 |
8 |
13 |
18 |
36 |
|
Temperature scope of shelf(℃) |
-55~120 |
-55~120 |
-55~120 |
-55~120 |
-55~120 |
|
Clapboard medium |
Low temperature silicone oil |
Low temperature silicone oil |
Low temperature silicone oil |
Low temperature silicone oil |
Low temperature silicone oil |
|
Water discharge 12 hour (kg) |
5 |
10 |
50 |
100 |
200 |
|
Vacuum pump |
Rotary vane pump |
Rotary vane pump |
Rotary vane pump |
Rotary vane pump |
Rotary vane pump |
|
Working vacuum degree |
≤130Pa |
≤130Pa |
≤130Pa |
≤130Pa |
≤130Pa |
|
Ultimate vacuum |
<10Pa |
<10Pa |
<10Pa |
<10Pa |
<10Pa |
|
Defrost mode |
Hot water spraying |
Hot water spraying |
Hot water spraying |
Hot water spraying |
Hot water spraying |
|
Compressor |
Entrance full closure |
Entrance full closure |
Copeland half-closure |
Copeland half-closure |
Copeland half-closure |
|
Steam pump, air compression pump etc |
No need |
No need |
No need |
No need |
No need |
|
Power |
1 or 3 phase |
1 or 3 phase |
3 phase |
3 phase |
3 phase |
|
Working temperature |
≤40℃ |
≤40℃ |
≤40℃ |
≤40℃ |
≤40℃ |
|
Rated power |
5kw |
6kw |
16kw |
28kw |
45kw |
|
Dimension(length*width*height)(mm) |
1300*700*1700 |
1300*700*1700 |
3000*1500*1800 |
3200*1600*2000 |
5000*2200*2500 |
1. Quality guarantee
We are not only selling machines. We also provide you the most sastifying after service.
We will, without charge, offer replacement for defective parts which is caused on product quality in one year. Lifelong service is offered with cost charge after one year.
2. Packaging & Shipping
We can help you to arrange shippment for you by Sea, by Air or by Express. We also accept customer inspection on the goods before delivery.
The goods will be packed in standard export wooden case or if in large quantity, in 20 feet or 40 feet container.
