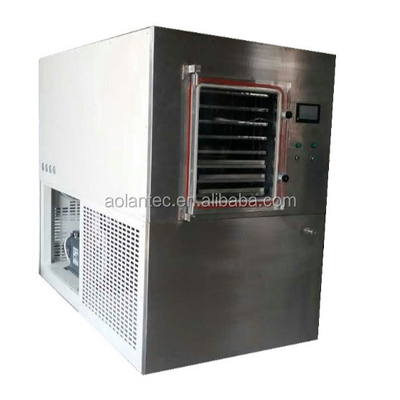

LGJ-300FG In-Situ Commercial Pilot Plant Pharmaceutical Freeze Dryer Machine
USAGE:
Vacuum freeze dryer is widely used in medicine, pharmacy, biological research, chemical industry, food, etc. The freeze-dried items are easy to be preserved for a long time, and can be restored to the pre-freeze-drying state and maintain the original biochemical characteristics after adding water.
Features:
1.The pre-freeze drying is carried out in the in-situ, reducing the operation of the drying process and realizing automation.
2.Shelf temperature error≤1 ℃, drying effect even;
3.Temperature of shelf adjustable, controllable, fumble, pilot and production process;
4.Touch screen operation, PID control, display drying curve;
5.The square tray is not easy to deform, easy to operate and easy to clean.
6.A filled gas valve can be filled with inert gas;
7.The drying chamber adopts high transparent plexiglas doors, and can observe the process of material change clearly during operation.
8.The optional automatic pressure plug device can select the eutectic point test device.
Technical parameters:
| Project | LGJ-300FG |
Drying Chamber | Dry Area | 3.15 Square meters |
Barrier Layer | 7+1 | |
Diaphragm Temperature Range | -40℃-+70℃(No-Load) | |
Clapboard Temperature Difference | ±1℃(When Balance ) | |
Baffle Spacing | 70mm | |
Partition Size | 500mm*900mm*15mm | |
Catch Water Cold Trap | Cold Well Minimum Temperature | ≤-70℃ |
Catch Water Capacity | 40Kg | |
In Tray Liquid | 30L(Calculate According To The Thickness Of 10mm) | |
Basic Parameters | Ultimate Vacuum | ≤10Pa |
Cooling Way | Air-Cooled: Well Ventilate Room Temperature≤25℃ |
1.What's the MOQ?
1 set can supply.
2.How about the validity of quotation?
Usually 30 days as exchange rate can be fluctuate.
3.What kind of payment term do you accept?
T/T, Paypal, Western Union, or Alibaba Escrow.
4.How about the delivery time?
Within 7 working days after receiving your payment, if customized, 30 working days.
5.How to transport the goods?
By express, by air or by sea, according to your require.
6.How about the package?
We will package the goods with Bubble film in Standard export wooden case.
7.What’s the Warranty Time ?
12 months.
