Home /Products/Kitchen Freeze Dryer/Medicine Processing Coffee Strawberries Herb Vacuum Dried Equipment Mini Top Press Freeze Drying Machine For Sale

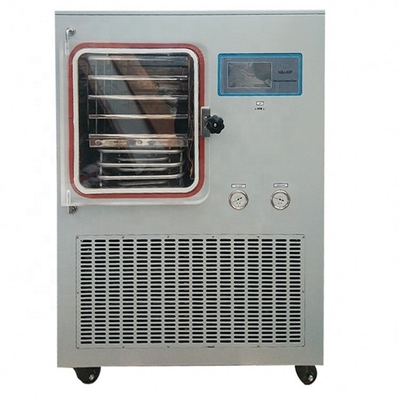

Medicine Processing Coffee Strawberries Herb Vacuum Dried Equipment Mini Top Press Freeze Drying Machine For Sale

1.0 Sets
MOQ
Medicine Processing Coffee Strawberries Herb Vacuum Dried Equipment Mini Top Press Freeze Drying Machine For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Freeze Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing, Vacuum Freeze Drying For Food, Fruit, Etc.
Condition: New
Voltage: 380V, 50Hz
Power: 2000w
Dimension(L*W*H): 655 * 640 * 1200mm
Key Selling Points: High-accuracy
Warranty: 1 Year
Weight (KG): 600
Applicable Industries: Food & Beverage Factory, Home Use
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Heating Method: Electric Heating
Material: Other
Product Name: Vacuum Freeze Drying Machine
Freeze Drying Area: 0.2㎡
Ice Collecting Capacity: ≥ 6 KG/24 H
Tray Dimensions: 400*270 Mm
Shelf Dimensions: 395*265 Mm
Shelf Spacing: 70mm
Tray Numbers: 1 Pcs
Shelf Temp. Range: -50℃~+70℃
Ultimate Vacuum: ≤5pa
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden packing;Export standard packing for vacuum freeze drying machine.
Supply Ability: 1000 Set/Sets per Month vacuum freeze drying machine
Product Description
Product Description
Coffee Strawberries Herb Vacuum Dried Equipment Mini Top Press
Freeze Drying Machine For Sale
Vacuum freeze dryers are widely used in medical, pharmaceutical, biological research, chemical and food fields. Freeze-dried items are easy to store for a long time, and can be restored to the state before freeze-drying after adding water and maintain the original biochemical properties. LGJ-10FD (electric heating) freeze dryer, freeze-drying in situ. It changes the tedious operation of the past drying process, prevents the pollution of materials, and realizes the automation of drying and sublimation. This model has shelf heating and programmable functions, and can memorize the freeze-drying curve, which is convenient for users to observe the freeze-drying process of materials.
Product Paramenters
Model
LGJ-10FD top press type
Freeze drying area
0.1㎡
Shelf dimension
400×270mm
Tray dimension
395×265mm
Tray number
1pcs
Shelf spacing
70mm
Shelf temp. range
-50℃~+70℃
Cold trap temp.
≤-60℃, optional ≤-80℃
Ice collecting capacity
≥6KG/24h
Pumping speed
4L/S
Ultimate vacuum
≤5pa
Power
2000w
Main unit weight
210kg
Main unit dimensions
655×640×1200mm
Cooling mode
wind cooled
Shipping weight
1L（thickness 10mm）


Loadable vials'qty
Ф12mm：777pcs
Ф16mm：434pcs
Ф22mm：220pcs
Technical parameter characteristics of LGJ-10FD ordinary vacuum freeze dryer:
1. Square warehouse in-situ vacuum freeze dryer, pre-freezing and drying are completed in-situ, easy to operate, and good drying effect. 2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and can observe the whole process of freeze-drying. 3. The inflation (discharging) valve adopts a safety diaphragm valve, which can be connected to an inert gas source, and filled with inert gas after drying to extend the shelf life of the material. 4. Specialized gas diversion technology, uniform ice trapping by cold trap and strong ice trapping ability. 5. Internationally renowned brand compressors, high efficiency, energy saving, long service life and low noise. 6. Fuzzy control technology for the temperature of the shelf, the temperature difference of the shelf is small, the temperature control accuracy is high, and the drying effect is uniform. 7. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and at the same time control the sample heating rate and optional vacuum adjustment system during the sublimation and analytical drying stages. 8. The powerful sensor calibration function ensures the accuracy of long-term use of the measured value. 9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance. 10. The professionally designed FD-EMB control system can save hundreds of process recipes, each of which contains 50 temperature control zones, which improves the process optimization rate. 11. The intelligent data recording system records and displays the temperature curve of the cold trap, the temperature curve of the sample, and the vacuum degree curve in real time. The exported data can be browsed and printed by computer and various operations, which is convenient for process optimization and drying effect verification. 12. Flexible manual + automatic control mode, manual for exploring the process, and automatically for mass production. 13. Real-time alarm display and historical alarm query function, convenient for fault diagnosis and equipment maintenance. 14. User level and password can be set, and operation and management can be carried out with decentralized authority.
Product Details
Company Profile
ZHENGZHOU MINGYI INSTRUMENT EQUIPMENT CO.,LTD is a major production and sales of laboratory equipment, life science equipment, glass equipment, medical equipment production and sales of one of the equipment company. The strength of the company, customers in products and consumers who enjoy a high reputation. The company operating the laboratory equipment, life science equipment, glass
equipment, medical equipment, the full range, reasonable prices, cost-effective. After long-term accumulation, the emphasis on credit, keep the contract to ensure product quality management principles, and now has a number of agents and retailers to establish a long-term and stable relations of cooperation, and won the trust of our customers.In response to the development of the era of globalization, we set up a special export company, serving the global market.
