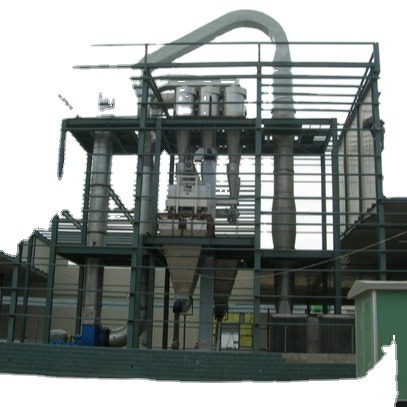

Air stream dryer is instant dryer, utilize hot air quick move to drive damp raw material and make it floating on the hot air.
Description:
QG Series Pulse Air stream dryer is a large quantity production drier, it adopt instant drying principle, utilize hot air’s quick move to drive damp raw material and make it floating on the hot air, this can strengthen the whole drying process, improve the speed of hot exchange.
Work Principle:
The air is filtered after heating, the temperature reached 80 ~ 300 °C (adjustable). The material is added to the feed hopper, a spiral feeder evenly join drying tube and hot air flow contact, forming complex heat convection dominated exchange process, finally reach dry products. Through the drying tube after the gas-solid mixture, first by the cyclone recovery materials, and then by bag filter separation powder (500 mesh below the recovery rate can reach 99%), the exhaust gas through the draught fan emptying.
<img src="//is.alicdn.com/img/pb/528/616/187/1187616528_197.jpg" alt="Energy saving China quality airflow dryer machines (QG)" ori-width="835" ori-height="432">
Product Characteristics:
1. Dry strength, high thermal efficiency, large handling capacity;
2. Short drying time, suitable for heat-sensitive materials;
3.Material less contact with the outside world, no pollution, good product quality;
4. Have simple structure, small volume, and convenient operation
Material to be dried:
The kinds of dry equipment can be suitable for more raw materials. Besides the raw materials mentioned in basic type drier, the following raw materials can also be dried. They are hypnone, ABC intermediate, ABS resin, ASC, white carbon black, phthalimidine, catalyst for oxalic acid, accelerant m.d.m, catalyst, deposited carbon powder, p-acetamidobenzene sulfonyl chloride, sodium para-aminosalicylate, terephthalic acid, diethylaniline, titanium dioxide, active, carbon, sodium fluosilicate, fluoric ore, ammmonium sulphate, silica gel powder, synthesis resin, calcium hydrogen phosphate, PP, aureomycin, sodium disilicate, oral glucose, sodium sulfate, sulphide ore, phosphorus ore powder, blue BB, PVC, phosphate fertilizer , acheomycin, ferric oxide, calcium carbonate,ilmenite, copper ore, potato, tail coal, stearate, maize protein, medicine, dose, lees and so on.
Technical Parameter:
|
Model |
Evaporated Moisture (kg) |
Power (kw) |
Occupied Area( m2) |
Height (m) |
|
QG50 |
50 |
9 |
16 |
9 |
|
QG100 |
100 |
21 |
26 |
11 |
|
QG200 |
200 |
39 |
35 |
13 |
|
QG250 |
250 |
48 |
51 |
15 |
|
QG500 |
500 |
60 |
78 |
16 |
|
QG1000 |
1000 |
135 |
105 |
18 |
|
QG1500 |
1500 |
168 |
120 |
19 |
