Soybean meal is a byproduct from the process of soybean oil extraction, which is mainly composed of protein (40% ~ 44%), fat (1% ~ 2%), carbohydrate (10% ~ 15%), and a variety of minerals, vitamins, and essential amino acids. Its nutrition is relatively comprehensive and balanced. In addition, soybean meal also contains soy isoflavones, phospholipids, and other bioactive substances, which is the most widely used plant-based protein resources. However, there are many kinds of antinutritional factors in soybean meal (trypsin inhibitors, soybean protein antigen, urease, phytic acid, etc.). On one hand, their existence has an inhibition effect on certain digestive enzymes when they are combined with some nutrient component and forms the production that is difficult to digest and absorb. On the other hand, some of them can cause organ damage to animals and leave a bad influence on health and growth.
Fermented soybean meal, also known as the microorganism fermented soybean meal the produced under controlled conditions, making use of microbial growth, reproduction and metabolism and the accumulation of useful enzyme and intermediate metabolites of bacteria. Through the microbial fermentation, the fermented soybean meal contains little antinutritional factors and is rich in small molecule soybean peptide, amino acids, enzymes, vitamin and bioactive factors, which has good palatability. It can be applied to piglets feeding, poultry feeding, and aquaculture. It is ideal for alternatives to the fish meal with huge market potential and economic value.
Fermented soybean meal often adopts the method of solid fermentation, adding a certain amount of water, the mixture of soybean meal and wheat bran (100:6) and the combination of Aspergillus oryzae and yeast(1:3). The fermentation time is 72 hours. With our paddle rotary drying equipment, the fermented soybean meal is dried to 12% moisture content instantly at low temperature and then crushed to 30-80 mesh. After being cooled to normal temperature, the whole process ends with the packing of eventual products.

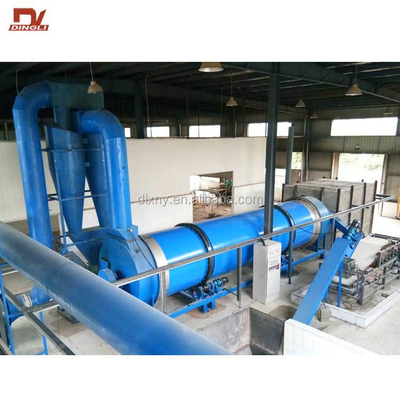

Material Flow :Material with 50-65% moisture by the screw conveyor into the mixing drum dryer to realize the downstream drying, material constantly be lifted, scattered and put forward with screw-type, the material and heat fully exchange heat, the moisture rapidly be evaporated and vaporized, the material which achieves the effect of drying will quickly be discharged from the roller under the hot air. Air Stream Flow :The air through the air blower increase pressure into the hot air furnace to heating, when the temperature reached to 600-850℃, the hot air will be into dryer to drying wet material and evaporation water by induce draft fan. Through three-layer heat transfer, the air temperature reduces to 55-65℃ and then discharge from dryer. The dust and moisture are purified trough the cyclone dust collector and wet dust collector.
Model(DLJG) | 1208 | 1408 | 1610 | 2010 | 2010/3 | 2210/3 | 2510/3 | 2512/3 | ||||||||
Input Capacity(t/h) | 1.82 | 2.18 | 3.15 | 3.81 | 4.76 | 5.51 | 6.33 | 7.60 | ||||||||
Output Capacity(t/h) | 1.07 | 1.28 | 1.85 | 2.24 | 2.80 | 3.24 | 3.72 | 4.47 | ||||||||
Vaporization(t/h) | 0.75 | 0.9 | 1.30 | 1.57 | 1.96 | 2.27 | 2.61 | 3.13 | ||||||||
Early Moisture(%) | 50±5% | |||||||||||||||
Final Moisture(%) | 15%(adjustable) | |||||||||||||||
Drying Temperature(°C) | 350±30℃ | |||||||||||||||
Total Power(KW) | 32 | 40 | 55 | 95 | 95 | 100 | 125 | 145 | ||||||||
Total Weight(T) | 15 | 17 | 21.5 | 26.5 | 26.5 | 28.5 | 37 | 41 | ||||||||
Plant Area(㎡) | 5*15 | 5*15 | 6*16 | 8*18 | 8*20 | 8*20 | 10*20 | 10*22 | ||||||||
Except above models, we also can supply special model according to your requirements. | ||||||||||||||||
Your device will be packed well in container and suit for long ocean shipping.
